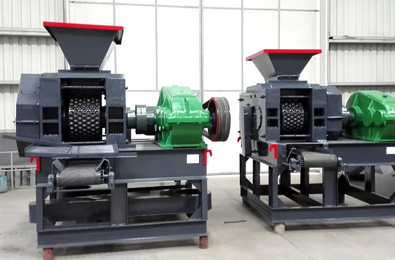

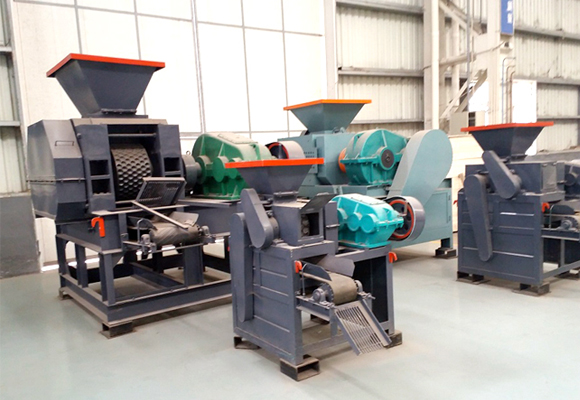

The roller press briquette machine is used to compress powdery raw materials into balls, and the shape of the ball briquette can be customized multi-purpose machine, suitable for different materials like charcoal, coal, metal and mineral. The briquettes are widely used in fuel, metallurgical and chemical industry.
Raw Material: charcoal, coal, metal and mineral powder, etc
Capacity: 1~28t/h

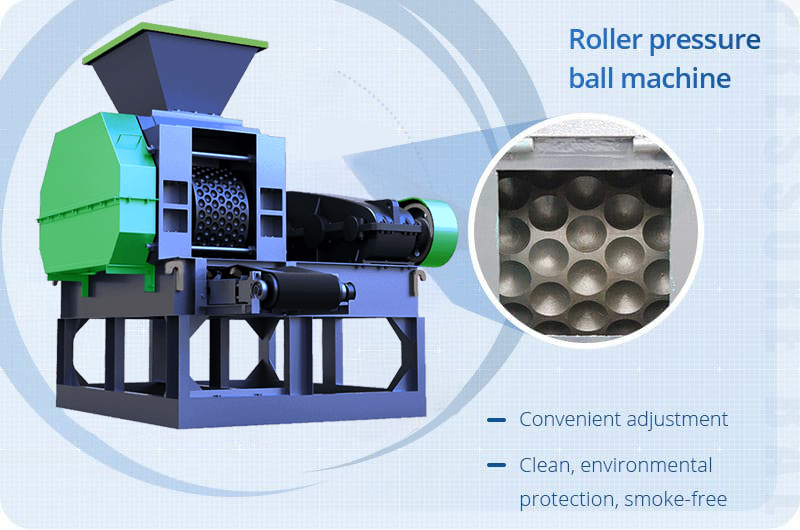

The roller press briquette machine is the briquette machine for powdery materials into ball briquettes. It is widely used to produce barbecue charcoals, mineral powder pellets, coke powder pellets, etc. The working principle of roller press briquette machine is based on using the pressure of the roller to compress powder or granular raw materials into regular-shaped spherical products. The roller press briquette machine is widely used in barbecue fuel, metallurgy, chemical and other industries. The high efficiency, energy saving and easy operation make it one of the indispensable and important equipment in industrial production.
The Briquette Machine can be used to press various powders such as coal powder, iron powder, coking coal, aluminum powder, iron filings, iron oxide scale, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke powder, various metal ore powder, non-metallic mineral powder, steel slag etc.
Coal briquetting machine is mainly used in processing coal powder into balls. The materials can be directly put into the furnace for smelting, so as to increase the extra value.
Raw Material Feeding: After pre-processing (such as crushing, mixing, etc.), the raw materials enter the machine through the feeding port.

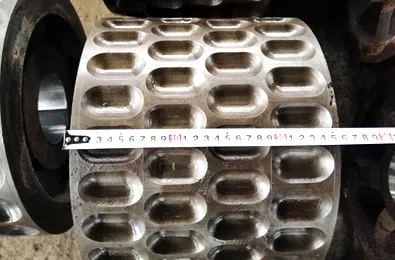

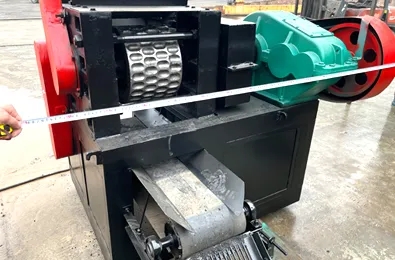

Pressing and Molding: The raw materials are squeezed and molded by two rollers rotating in opposite directions. The rollers with different pattern designs can be replaced to press the briquettes you want.
Discharging: Ultimately, the finished charcoal briquettes are discharged through the outlet.
1. Efficient: The machine can effectively compress the raw materials into high-density charcoal briquettes, greatly improving production efficiency.
2. Uniformed Products: The machine can produce briquettes with uniformed shapes and density, making the charcoal briquettes quality higher.
3. Easy to Operate: The roller press briquette machine has a simple structure and is very easy to operate, without any complicated technology.
4. Versatile: The roller press briquette machine can press a variety of raw materials into briquettes, and the shape of the finished products can be customized according to different needs.
5. Long Service Life: All parts of the roller press machine are made of high-strength corrosion-resistant materials, which can withstand high-light continuous work and have a long service life.
Roller press briquette machine is widely used for producing BBQ charcoal due to their efficiency, versatility, and ability to handle a variety of raw materials. The charcoal produced using roller press briquette machine is popular for grilling and barbecuing due to its high calorific value, low ash content, and consistent burning characteristics. In addition, this roller press machine is also used in other filed.
BBQ Charcoal Briquettes: Roller press briquette machine compacts powder materials into dense high-quality BBQ charcoal briquettes. The uniform shape and size of the briquettes ensure even burning and long-lasting heat, making them ideal for grilling and barbecuing.
Outdoor Events and Festivals: Charcoal briquettes produced by roller press briquette machine are commonly used for outdoor events, festivals, and picnics where grilling is a popular activity. The portable and easy-to-use nature of BBQ charcoal briquettes makes them an essential item for outdoor cooking enthusiasts.
Metallurgical Industry: Used to produce ore powder pellets, used as fuel additives in the ore sintering process and in the metal scrap recycling industry.
Chemical Industry: Making chemical products such as fertilizers and pigments.
| Model |
Roller diameter (mm) |
Capacity (t/h) |
Power (kw) |
Briquettes shape and size |
| YQ290 | 290 | 1-2.5 | 5.5-7.5 | Defined by users |
| YQ360 | 360 | 3-5 | 7.5-11 | |
| YQ430 | 430 | 5-8 | 15 | |
| YQ500 | 500 | 8-11 | 30 | |
| YQ650 | 650 | 10-15 | 37-45 | |
| YQ750 | 750 | 20-25 | 45 | |
| YQ850 | 850 | 20-28 | 55 |
Note: Other dimmension and performance can be customized
