The double shaft shredder boasts broad applicability across multiple sectors, making it ideal for shredding solid substances like E-waste, metal, wood, plastic, waste tires, packaging drums, pallets and other similar materials.
The double shaft shredder features wide-ranging industrial applicability, tailored for shredding solid materials like E-waste, metal, wood, plastic, scrap tires, packaging barrels, pallets and more.
● Metal: Copper, aluminum, iron sheets, aluminum castings, and other castings with a thickness of less than 5mm.
● E-waste: Obsolete computer host casings, used hard disks, discarded optical drives, empty toner cartridges, spent batteries, etc.
● Electrical appliances: Household/industrial TV casings, monitor housings, microwave oven shells, dishwasher enclosures, etc.
● Plastic: Plastic lumps, plastic pallets, plastic drums, engineering plastics, and related plastic products.
● Rubber: Waste tires, conveyor belts, and other rubber waste or discarded rubber products.
● Pipe material: PVC, PE, PP pipes, urban water supply pipes, and other industrial/commercial piping.
● Wood: Planks, wooden pallets, branches, and other solid wood materials or wood waste.
● Straw: Wheat straw, corn straw, bean straw, and other agricultural straw resources.

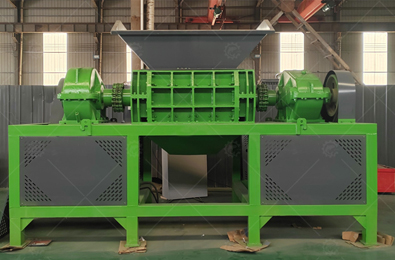

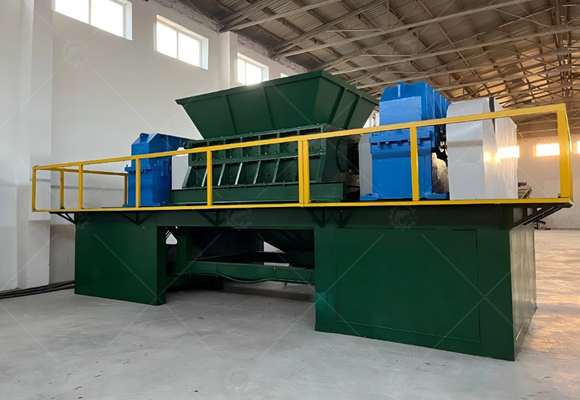

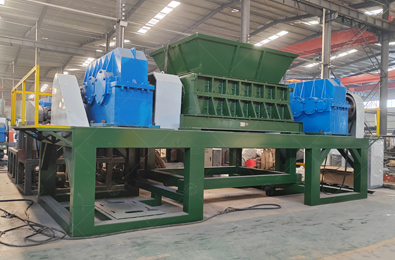

1.Feed hopper: Used for loading materials to be crushed, effectively preventing material splashing during the processing;

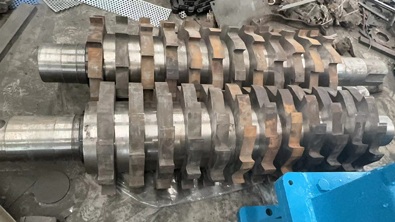

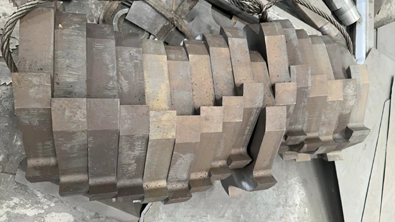

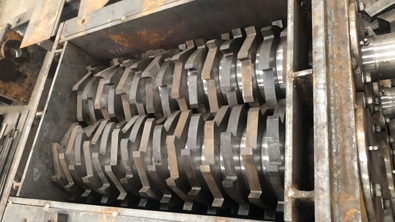

2.Double shaft cutting system: Customized blades are adopted based on the customer’s specific material requirements;
3.Power system: Features high-quality motors from top Chinese brands (standard configuration), while supporting tailored motor options based on customer demands.

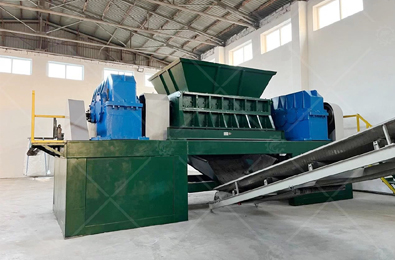

4.Discharging conveyor system: Equipped with an independent power system, which is integrally bolted to the shredder for convenient integral extraction.
Operates at low speed, with low noise and minimal dust emission.
Equipped with programmable control and multi-stage speed regulation, it is suitable for the crushing and processing of various materials.
The output particles are uniform in size.
Robust and rugged machines that have throughput up to 20 tons/hr.
Requires lower power consumption while offering higher reliability.
| Model | Crushing chamber size
(mm) |
Power
(kw) |
Dimension
(mm) |
| JX-600 | 600×550 | 11 x 2 | 2500x1200x1800 |
| JX-800 | 800×620 | 22 x 2 | 3000x1400x1900 |
| JX-1000 | 1000×800 | 30 x 2 | 3800x1750x2300 |
| JX-1200 | 1200×900 | 45 x 2 | 4200x1750x2300 |
| JX-1400 | 1400×950 | 75 x 2 | 5000x2000x2500 |
| JX-1600 | 1600×1050 | 75 x 2 | 5300x2300x3400 |
| JX-1800 | 1800×1300 | 110 x 2 | 6000x2500x3700 |
| JX-2000 | 2000×1600 | 160 x 2 | 6500x2500x3900 |
Note: Other dimmension and performance can be customized
We are in Zhengzhou city, Henan province, our company is only a 30-minute drive from Zhengzhou airport (CGO). If you plan to visit us, we’ll pick you up at the airport.
Before placing an order, our sales team will conduct detailed and in-depth communication with you to determine your specific requirements. We then recommend machine configurations based on your needs, ensuring that you buy the best machine for your business. We insist on providing the most competitive products when meeting the needs of our customers.
You can also send us your samples to make sure the machine is suitable for your material.
Our materials have a strict quality control before go to our warehouse.
When the machine is ready, we arrange the test running in workshop to make sure everything is qualified.
We have 24 hours after sales team, if you have any questions, you can contact us anytime.
We can send you the operation manual/ video for reference.
Video conference with engineer for technical support also available.
We are ok with EXW, FOB, CIF, DDP, etc.
We have professional freight forwarders who can arrange the transportation of goods.
