Referred to as a sawdust briquette machine, the biomass briquette equipment processes biological materials—such as wood, sawdust, peanut shells, rice husks, bagasse and other agricultural waste—into solid rod sawdust briquettes. As a practical biofuel, the product is widely used in home fireplaces, boiler heating, power plant steam generation, barbecues and other fields.
Materia prima: materiales biológicos
Capacidad: 1~30t/h
The biomass briquette machine is designed to transform various biomass materials into dense, compact sawdust briquettes. As an eco-friendly and high-efficiency charcoal briquetting device, it’s widely applied in biomass energy production. The final sawdust briquettes serve as biofuel for home fireplaces, boiler heating, power plant steam generation, barbecues and other scenarios, and are regarded as an optimal alternative to coal and other fossil fuels.
A wide range of waste materials and residues can be used, such as sawdust, bamboo dust, bagasse, cotton stalks, coffee husks, peanut shells, rice husks, sunflower shells, straw and sugar factory waste. Other applicable materials include coconut shells, tea grounds, tree bark, weeds, shrubs and branches.
Materials need to be finer than 5mm and have a moisture content of 8%–12%. Too large or wet materials are hard to form, increase wear and reduce finished product quality. Crushed and dried materials are ready for use with no binders required.

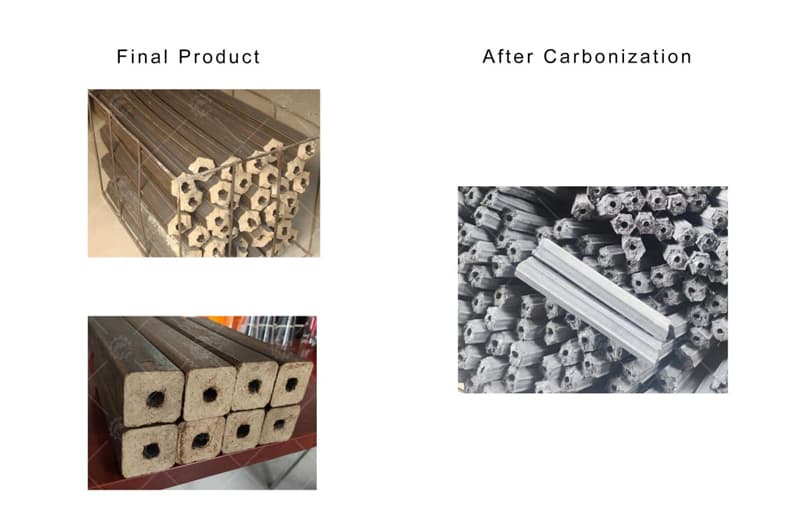

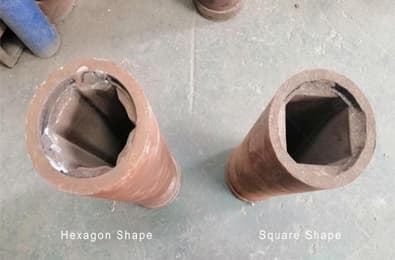

The finished briquettes typically have an outer diameter of 50–60mm and a hole diameter of 15–20mm, with a hollow square or hexagonal cylindrical shape.
Raw Material Pretreatment: Before feeding into the biomass briquette machine, raw materials need preprocessing (e.g., crushing and drying) to facilitate better molding.
Feeding: Feed the processed raw materials into the machine through the feeding port.

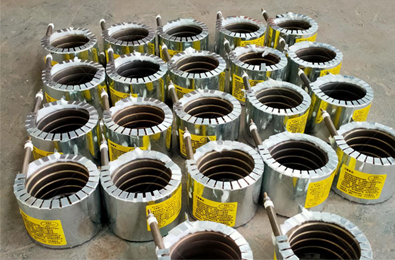

Pressing and Molding: Under the combined action of the screw propeller and heating ring, a high-temperature and high-pressure area is generated. This processes loose raw materials into hollow solid rods that boast high density, small size and strong flammability.
1. Versatile: The biomass briquette machine is capable of processing a wide range of biomass materials, such as sawdust, wood chips, agricultural residues, straw, rice husks, peanut shells and coconut shells, etc.
2. Efficient: It efficiently compresses biomass into eco-friendly sawdust briquettes for fuel use, optimizing the utilization of biomass resources while minimizing waste.
3. Environment Friendly: By using biomass raw materials, the machine avoids emitting harmful gases such as carbon dioxide, contributing to environmental protection.
4. High Capacity and Low Energy Use: Offers substantial processing capacity without excessive energy consumption, balancing efficiency and cost savings.

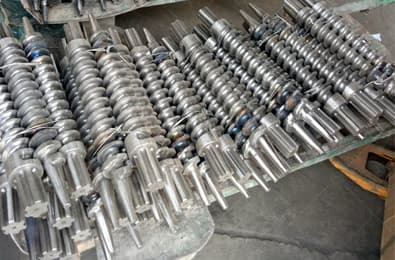

5. Long Service Life: The propeller adopts wear-resistant alloy steel as the base material, with a nickel-based alloy powder welding layer on the surface—enabling long-term stable operation.
6. Easy to Operate: No adhesives needed, simple temperature control system for convenient operation and management.
7. Good Briquettes: The sawdust or wood briquettes produced are dense, compact and highly flammable, meeting practical use needs.
The biomass briquette machine is used in various industries for its capacity to turn biomass waste into usable briquettes.
Cooking and Heating: Its produced biomass briquettes are an efficient, clean alternative to conventional fuels such as firewood and charcoal for cooking and heating purposes.
Industrial applications: Biomass briquettes can be used as boiler fuel and in industries like textiles, food processing and papermaking.
As a renewable energy source, biomass briquettes are widely applied in heating, cooking and power generation. They replace traditional fuels such as coal, wood and charcoal, mitigating environmental pollution and reducing resource waste.
| Modelo | Capacidad (kg/h) |
Potencia (kw) |
Dimensión (mm) |
| JX-50V | 300-500 | 18.5 | 1700x550x1600 |
| JX-50VI | 400-600 | 22 | 1750x600x1830 |
| JX-50VII | 500-700 | 30 | 1800x710x1850 |
Nota: Se pueden personalizar otras dimensiones y prestaciones.
Estamos en la ciudad de Zhengzhou, provincia de Henan, nuestra empresa está a sólo 30 minutos en coche del aeropuerto de Zhengzhou (CGO). Si planea visitarnos, le recogeremos en el aeropuerto.
Antes de realizar un pedido, nuestro equipo de ventas mantendrá una comunicación detallada y en profundidad con usted para determinar sus requisitos específicos. A continuación A continuación, le recomendamos configuraciones de máquinas basadas en sus necesidades, asegurándonos de que compra la mejor máquina para su negocio. Insistimos en ofrecer los productos más competitivos a la hora de satisfacer las necesidades de nuestros clientes.
También puede enviarnos sus muestras para asegurarse de que la máquina es adecuada para su material.
Nuestros materiales pasan un estricto control de calidad antes de entrar en nuestro almacén.
Cuando la máquina está lista, organizamos la prueba de funcionamiento en taller para asegurarnos de que todo está cualificado.
Tenemos 24 horas después de equipo de ventas, si usted tiene alguna pregunta, puede contactar con nosotros en cualquier momento.
Podemos enviarle el manual de funcionamiento/vídeo como referencia.
Videoconferencia con ingeniero para asistencia técnica también disponible.
Estamos de acuerdo con EXW, FOB, CIF, DDP, etc. Estamos de acuerdo con EXW, FOB, CIF, DDP, etc.
Contamos con transitarios profesionales que pueden organizar el transporte de mercancías.
